sudo apt update
sudo apt install -y ca-certificates curl gnupg
sudo install -m 0755 -d /etc/apt/keyrings
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg
sudo chmod a+r /etc/apt/keyrings/docker.gpg
echo \
"deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/ubuntu \
$(. /etc/os-release && echo ${UBUNTU_CODENAME}) stable" \
| sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
sudo apt update
sudo apt install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-pluginsudo usermod -aG docker $USER newgrp docker
[KGB2] munakata:~$ docker run --rm hello-world Unable to find image 'hello-world:latest' locally latest: Pulling from library/hello-world 17eec7bbc9d7: Pull complete ea52d2000f90: Download complete Digest: sha256:d4aaab6242e0cace87e2ec17a2ed3d779d18fbfd03042ea58f2995626396a274 Status: Downloaded newer image for hello-world:latest Hello from Docker! This message shows that your installation appears to be working correctly. To generate this message, Docker took the following steps: 1. The Docker client contacted the Docker daemon. 2. The Docker daemon pulled the "hello-world" image from the Docker Hub. (amd64) 3. The Docker daemon created a new container from that image which runs the executable that produces the output you are currently reading. 4. The Docker daemon streamed that output to the Docker client, which sent it to your terminal. To try something more ambitious, you can run an Ubuntu container with: $ docker run -it ubuntu bash Share images, automate workflows, and more with a free Docker ID: https://hub.docker.com/ For more examples and ideas, visit: https://docs.docker.com/get-started/ [KGB2] munakata:~$ docker compose version Docker Compose version v5.0.0
[KGB2] munakata:~$ lsusb Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 001 Device 002: ID 04ca:004f Lite-On Technology Corp. SK-9020 keyboard Bus 001 Device 003: ID 05e3:0610 Genesys Logic, Inc. Hub Bus 001 Device 004: ID 26ce:01a2 ASRock LED Controller Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 003 Device 002: ID 174c:2074 ASMedia Technology Inc. ASM1074 High-Speed hub Bus 003 Device 003: ID 051d:0002 American Power Conversion Uninterruptible Power Supply Bus 003 Device 004: ID 04e6:5116 SCM Microsystems, Inc. SCR331-LC1 / SCR3310 SmartCard Reader <---- Card Reader Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 004 Device 002: ID 174c:3074 ASMedia Technology Inc. ASM1074 SuperSpeed hub Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
[KGB2] munakata:~$ ls -l /dev/dvb/ total 0 drwxr-xr-x 2 root root 100 12月 28 07:32 adapter0 drwxr-xr-x 2 root root 100 12月 28 07:32 adapter1 drwxr-xr-x 2 root root 100 12月 28 07:32 adapter2 drwxr-xr-x 2 root root 100 12月 28 07:32 adapter3 drwxr-xr-x 2 root root 100 12月 28 07:32 adapter4 drwxr-xr-x 2 root root 100 12月 28 07:32 adapter5 drwxr-xr-x 2 root root 100 12月 28 07:32 adapter6 drwxr-xr-x 2 root root 100 12月 28 07:32 adapter7
[KGB2] munakata:~/mirakurun$ cat docker-compose.yml
services:
mirakurun:
# `:latest` can be changed to fix the version
# `:latest` の部分を編集するとバージョンを固定できます
# available tags: https://hub.docker.com/r/chinachu/mirakurun/tags
#image: chinachu/mirakurun:latest
image: chinachu/mirakurun:3.9.0-rc.4
container_name: mirakurun
cap_add:
- SYS_ADMIN
- SYS_NICE
environment:
TZ: Asia/Tokyo
# comment out below if you commented out `network_mode: host`
# `network_mode: host` をコメントアウトする場合はここもコメントアウト
DOCKER_NETWORK: host
# you must set hostname if accesing by hostname (other than IP address)
# ブラウザから IP アドレス以外でアクセスする場合はホスト名を設定する必要があります
# hostname: localhost
# --
# for debug
# LOG_LEVEL: "3"
# DEBUG: "true"
network_mode: host
# comment out `devices:` if you commented out all devices
# `devices` を全てコメントアウトした場合は `devices:` もコメントアウト
devices:
# comment out below if you don't use card readers
# カードリーダーを使わない場合は以下をコメントアウト
- /dev/bus:/dev/bus
# comment out below if you don't use DVB devices
# DVB チューナーを使わない場合は以下をコメントアウト
- /dev/dvb:/dev/dvb
volumes:
# you can change to any location if you want.
- /opt/mirakurun/run:/var/run
- /opt/mirakurun/opt:/opt
- /opt/mirakurun/config:/app-config
- /opt/mirakurun/data:/app-data
tmpfs:
- /tmp
restart: always
logging:
driver: json-file
options:
max-file: "1"
max-size: 10m[KGB2] munakata:~$ sudo mkdir -p /opt/mirakurun/{run,opt,config,data}
[KGB2] munakata:~$ cd /opt/mirakurun/
[KGB2] munakata:/opt/mirakurun$ ls -l
total 16
drwxr-xr-x 2 root root 4096 12月 25 10:43 config
drwxr-xr-x 3 root root 4096 12月 25 11:15 data
drwxr-xr-x 4 root root 4096 12月 25 10:43 opt
drwxr-xr-x 3 root root 4096 12月 28 07:32 run[KGB2] munakata:/opt/mirakurun$ cd config/
[KGB2] munakata:/opt/mirakurun/config$ ls -l
total 12
-rw-r--r-- 1 munakata munakata 2538 8月 11 2024 channels.yml
-rw-rw-r-- 1 root root 278 12月 25 10:43 server.yml
-rw-r--r-- 1 root root 1796 12月 25 11:00 tuners.yml
[KGB2] munakata:/opt/mirakurun/config$ head tuners.yml
- name: adapter0
types:
- BS
- CS
dvbDevicePath: /dev/dvb/adapter0/dvr0
decoder: arib-b25-stream-test
command: >-
dvbv5-zap -a 0 -c ./config/dvbconf-for-isdb/conf/dvbv5_channels_isdbs.conf
-r -P <channel>
- name: adapter1[KGB2] munakata:~/mirakurun$ docker compose down 2>/dev/null || true [KGB2] munakata:~/mirakurun$ docker image rm -f chinachu/mirakurun:latest 2>/dev/null || true [KGB2] munakata:~/mirakurun$ docker image rm -f chinachu/mirakurun:3.9.0-rc.4 2>/dev/null || true [KGB2] munakata:~/mirakurun$ sudo systemctl stop docker containerd [KGB2] munakata:~/mirakurun$ sudo rm -rf /var/lib/docker/containerd [KGB2] munakata:~/mirakurun$ sudo systemctl start containerd docker [KGB2] munakata:~/mirakurun$ docker compose pull
[KGB2] munakata:~$ cd ~/mirakurun [KGB2] munakata:~/mirakurun$ docker compose up -d [KGB2] munakata:~/mirakurun$ docker compose ps [KGB2] munakata:~/mirakurun$ docker logs -n 200 mirakurun
[KGB2] munakata:~/mirakurun$ cd ~/mirakurun [KGB2] munakata:~/mirakurun$ docker compose restart
[KGB2] munakata:~/mirakurun$ curl -sSf http://127.0.0.1:40772/api/version
{"current":"3.9.0-rc.4","latest":"4.0.0-beta.18"}[Unit] Description=Mirakurun (docker compose) Requires=docker.service After=docker.service network-online.target Wants=network-online.target [Service] Type=oneshot WorkingDirectory=/raid_vol/home/munakata/mirakurun ExecStart=/usr/bin/docker compose up -d ExecStop=/usr/bin/docker compose down RemainAfterExit=yes TimeoutStartSec=0 [Install] WantedBy=multi-user.target
[KGB2] munakata:~$ sudo systemctl daemon-reload [KGB2] munakata:~$ sudo systemctl enable --now mirakurun-compose.service
[KGB2] munakata:~$ sudo systemctl status mirakurun-compose.service --no-pager
[KGB2] munakata:~$ systemctl status mirakurun-compose.service
● mirakurun-compose.service - Mirakurun (docker compose)
Loaded: loaded (/etc/systemd/system/mirakurun-compose.service; enabled; preset: enabled)
Active: active (exited) since Sun 2025-12-28 07:32:31 JST; 2 days ago
Process: 1892 ExecStart=/usr/bin/docker compose up -d (code=exited, status=0/SUCCESS)
Main PID: 1892 (code=exited, status=0/SUCCESS)
CPU: 76ms
12月 28 07:32:31 kgb2 systemd[1]: Starting mirakurun-compose.service - Mirakurun (docker compose)...
12月 28 07:32:31 kgb2 docker[1915]: Container mirakurun Creating
12月 28 07:32:31 kgb2 docker[1915]: Container mirakurun Created
12月 28 07:32:31 kgb2 docker[1915]: Container mirakurun Starting
12月 28 07:32:31 kgb2 docker[1915]: Container mirakurun Started
12月 28 07:32:31 kgb2 systemd[1]: Finished mirakurun-compose.service - Mirakurun (docker compose).mirakurunPath: http://127.0.0.1:40772/
[KGB2] munakata:~$ npm install -g pm2 [KGB2] munakata:~$ pm2 -v 6.0.14
[KGB2] munakata:~$ cd git/EPGStation/ [KGB2] munakata:~/git/EPGStation$ sudo pm2 start dist/index.js --name epgstation

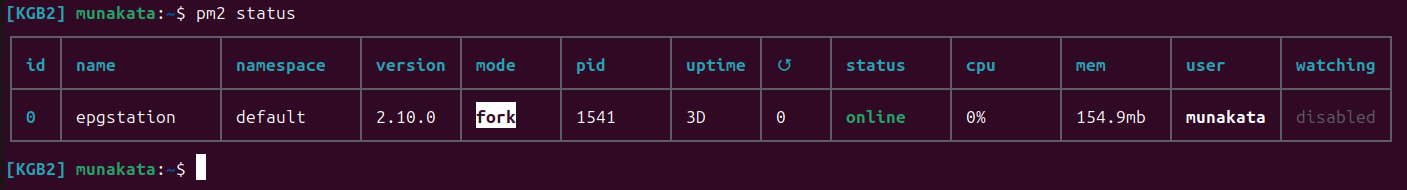

[KGB2] munakata:~$ pm2 status
[KGB2] munakata:~/git/EPGStation$ pm2 stop epgstations [KGB2] munakata:~/git/EPGStation$ pm2 restart epgstation
[KGB2] munakata:~$ pm2 save
